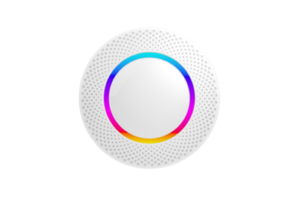

PRODUCT OVERVIEW

EX3000-t is an in-house Bluetooth ® IoT gateway developed by Exark for Bluetooth device data collection and upload with WPA2-EAP enter- prise-level encryption, hence assisting users to connect to cloud servers quickly, ensuring data security and privacy. With the EXARK CONTROL PLATFORM, its connection version can communicate bidirectionally with asset tags, and environmental sensors by down- link configuration operation. Its embedded colorful circle light strip serves as an indicator to remind users of its status. The EX3000-t gateway is designed to help users quickly implement high-value location-based services and help users boost their efficiency while lowering variable costs. It has a wide range of applications, including warehouses, healthcare, retailing, and manufacturing.

Click here to download the datasheet

KEY FEATURES

Bidirectional Communication  & Wide-Range Detection

The connection version has a bidirectional communication function. It can make the terminal light up, ring, upgrade, and change parameters in bulk and remotely through the Exark CONTROL PLATFORM. And with a high level of Bluetooth sensitivity, a superior antenna design, and special electrical treatment, EX3000-t can cover up to 300 meters of radius in an open area, helping users to lower the deployment cost and achieving high economic efficiency.

 Self-repairing Fault & High Stability

EX3000-t gateway has WiFi recovery function and can add multiple WiFi access points. To prevent data loss, it can store data locally in case of disconnecting. Through compelling troubleshooting and recovery capabilities, it is guaranteed that the gateway works flawlessly and is maintenance-free.

High Throughput & Data can be Filtered

EX3000-t can collect and process 400~800 data packets per second, collecting and monitoring data from massive Bluetooth devices with a large coverage. The scanning interval and uploading interval can be adjusted to better fit each individual scenario. It has multiple data filtering options, not only controls the data flow but also filters out the dupli- cates, to reduce redundant data.

 Remote Access and Manage by Batch

Other than connecting by WiFi, users can access it remotely. And use a tool kit to change settings or update firmware by batch. Users can also subscribe to related subjects and receive status reports instantaneously, making the process as easy as a breeze.

High Security & Strong Compatibility

EX3000-t supports WPA/WPA2-EAP enterprise-level encryp- tion, to keep unauthorized people from accessing or chang- ing settings. When data is transferred by MǪTT protocol, SSL/TLS security protocol, and CA certificates are optional for ensuring data security. EX3000-t is compatible with different Bluetooth devices, supporting various data formats to meet the requirements of different development platforms.

 Flexible Installation & Fast Upgrade

EX3000-t supports PoE and 5V power adapters. It can be installed with screws, magnets, or brackets to fit different scenarios. Users can upgrade its firmware via OTA upgrades with a special lighting effect as an indicator during the upgrade process. It also supports upgrading by USB, FILE, LAN, etc., which makes maintenance fast and easy.

MARKET APPLICATIONS

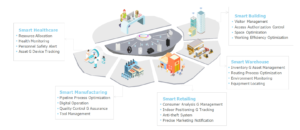

  • Smart Building
  • Smart Healthcare
  • Smart Warehouse
  • Smart Retailing
  • Smart Venue
  • Industry 4.0



APPLICATIONS CASES















WORKING PRINCIPLE



Deploy the EX3000-t gateway by adjusting to the on-site environment. Choose the best installa- tion method according to your scenario.

Bundle the Bluetooth beacon device with the asset, person, tool, or mobile device that needs to be located.

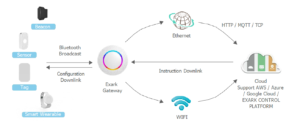

Within the scanning range, the EX3000-t gateway will receive the Bluetooth signal broadcast signal from the Bluetooth beacon and upload it to the corresponding server through different network protocols.

The user parses the data and can also control the terminal after giving command to accomplish objectives such as position and asset management.

BASIC SPECIFICATIONS

ModelExark EX3000-t
MaterialABS
ColorWhite
Size (D*H)Ø150×36 mm
Weight155 g
Power SupplyDC 5V/1A, 802.3af PoE
Network ConnectionWiFi / Ethernet
Interface1×10/100M RJ45 port, 1×USB port
LEDPower supply server connection status indicators
Working EnvironmentIndoor
Working Temperature-10~50°C
Working Humidity5%~95%RH, no condensation
Installation MethodsSucked, pinned, placed horizontally
Firmware UpdateOTA, USB, FILE, LAN

WIFI SPECIFICATIONS
WiFi ProtocolsIEEE 802.11 b/g/n
WiFi Frequencies2.4–2.4835 GHz
Emitting Power17 dBm @802.11b, 11.3 dBm @802.11g, 8.2 dBm @802.11n
Data Transfer Speed802.11n: Up to 300 Mbps; 802.11g: Up to 54 Mbps; 802.11b: Up to 11 Mbps
Transfer Speed2TR 300 Mbps
Receiving Sensitivity270M: -61 dBm@10%PER
135M: -65 dBm@10%PER
108M: -68 dBm@10%PER
54M: -68 dBm@10%PER
11M: -85 dBm@10%PER
6M: -88 dBm@10%PER
1M: -61 dBm@10%PER
Modulate ModeDBPSK, DQPSK, CCK, OFDM (BPSK/QPSK/16-QAM/64-QAM)
Network ProtocolHTTP (SSL/TLS) / MQTT (SSL/TLS G Proxy) / TCP
Wireless EncryptionWPA-PSK / WPA2-PSK / WPA-EAP / WPA2-EAP and TKIP

BLUETOOTH SPECIFICATIONS
Bluetooth Frequency2.4–2.4835 GHz
Bluetooth ModulationGFSK
Emitting Power18 dBm (max)
Receiving Sensitivity-108 dBm @1 Mbps, 0.1% BER
ThroughputAbout 400–800 packets per second
Scan CoverageAbout 300 meters of covered radius (open area)
SOFTWARE SUPPORT

  • TagCloud and Exark CONTROL PLATFORM are for visualized demonstration and the API is provided.
  • The gateway firmware’s SDK is provided, and functions are user-customizable
PRECAUTIONS
  • Standard and connection versions are available for selection. The connection efficiency of the gateway is proportional to the number of Bluetooth modules. If you need multiple Bluetooth modules (up to 6), you can place a customized order.
  • EX3000-t can be powered by 5V/1A DC or PoE. The unified adapter is not provided due to incompatibility in different countries.
  • To ensure normal scanning and accuracy, try to install as far away as possible from corners, metal, glass shields, and other obstructions.
  • Try not to use the gateway in a humid environment or outdoors. The product could be damaged if it exceeds the normal operating temperature range.
  • If you need to configure the gateway, please contact our sales team to get more information about EX3000-t configuration instructions and data interface documents.
QUALITY ASSURANCE

The factory has already obtained the certification of ISO9001 Quality System. Each product has been strictly tested
(tests include transmission power, sensitivity, power consumption, stability, aging, etc.).
Warranty Period: 12 months from the date of shipping (Battery and other accessories excluded).



Positioning Technology – Bluetooth 5m accuracy
Maximum Positioning Diameter – 20m (submeter level)
✓ Interface Protocol – Bluetooth 4.0 or above
✓ Compatibility – Compatible with iOS/Android, mobile APP/Mini Program
✓ Network Interface – 10/100M RJ45
Antenna Type I – Built-in omnidirectional antenna
Interface Type – Daisy chain (one input, one output), dual Ethernet ports for series connection
✓ Upgrade – OTA
✓ Frequency Band – 2.4GHz ~ 2.485GHz
✓ Installation – Ceiling-mounted / Wall mounted, maximum installation height 20m
✓ Dimensions – 220mm x 220mm x 32mm
✓ Weight – 570g
✓ Power Supply – IEEE 802.3af PoE 48V
✓ Operating Temperature – 20°C ~ 70°C
✓ Storage Temperature – -40°C ~ 85°C
✓ Operating Humidity – 10% ~ 90%, noncondensing
✓ Storage Humidity – 5% ~ 95%, noncondensing
✓ Certifications – SRRC / BQB / FCC / CE / RoH
